Nagamangala Expressway – Bangalore, India

Technical details
Client
National Highway Authority of India (NHAI)
Dates

Construction Completed: 2010

Location
Bangalore, India
Partners
Design-Build Contractor: Navayuga Engineering Co. Ltd., Consultant: JMI Pacific
Activity
SYSTRA IBT’s Role: Bridge Design Consultant

DESIGN-BUILD

Main Span: 28.5 m (93 ft) to
39.4 m (129 ft)

Bridge Length: 4.1 km (2.5 mi)

Width: 16.4 m (54 ft)

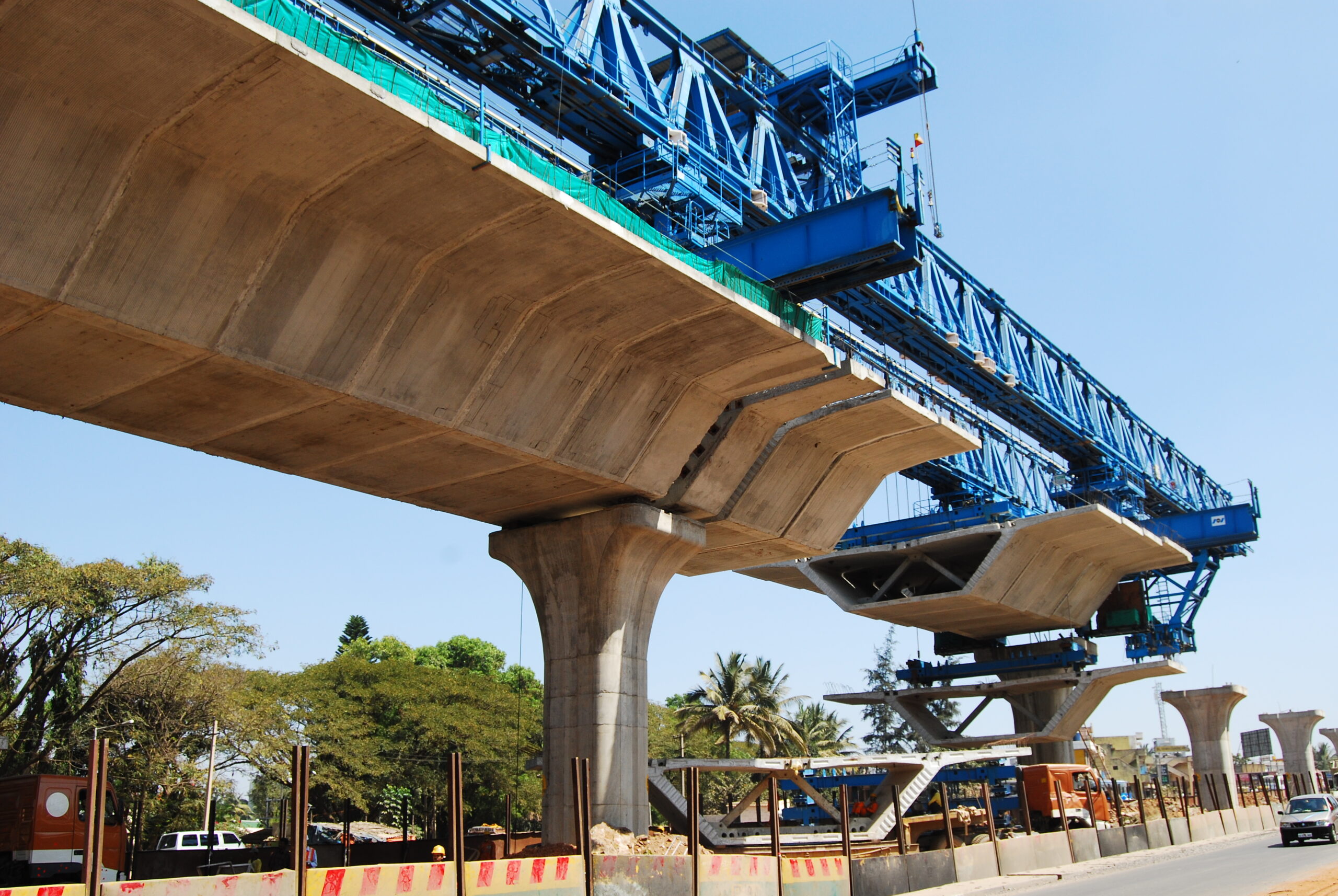

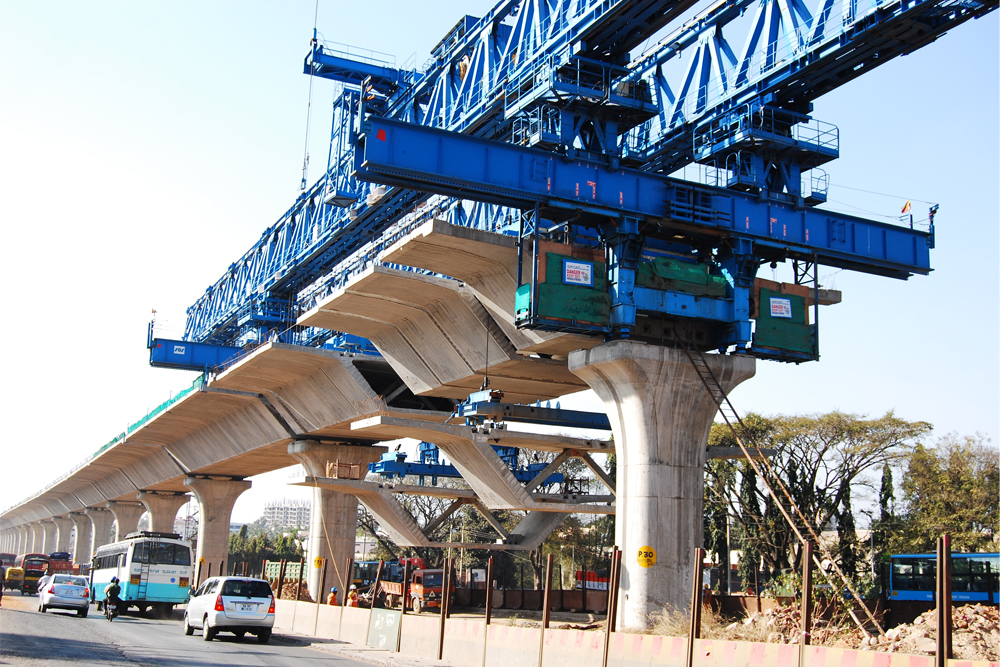

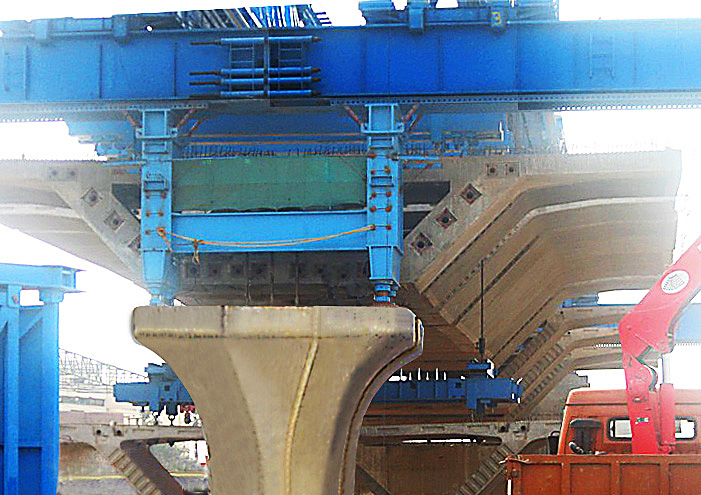

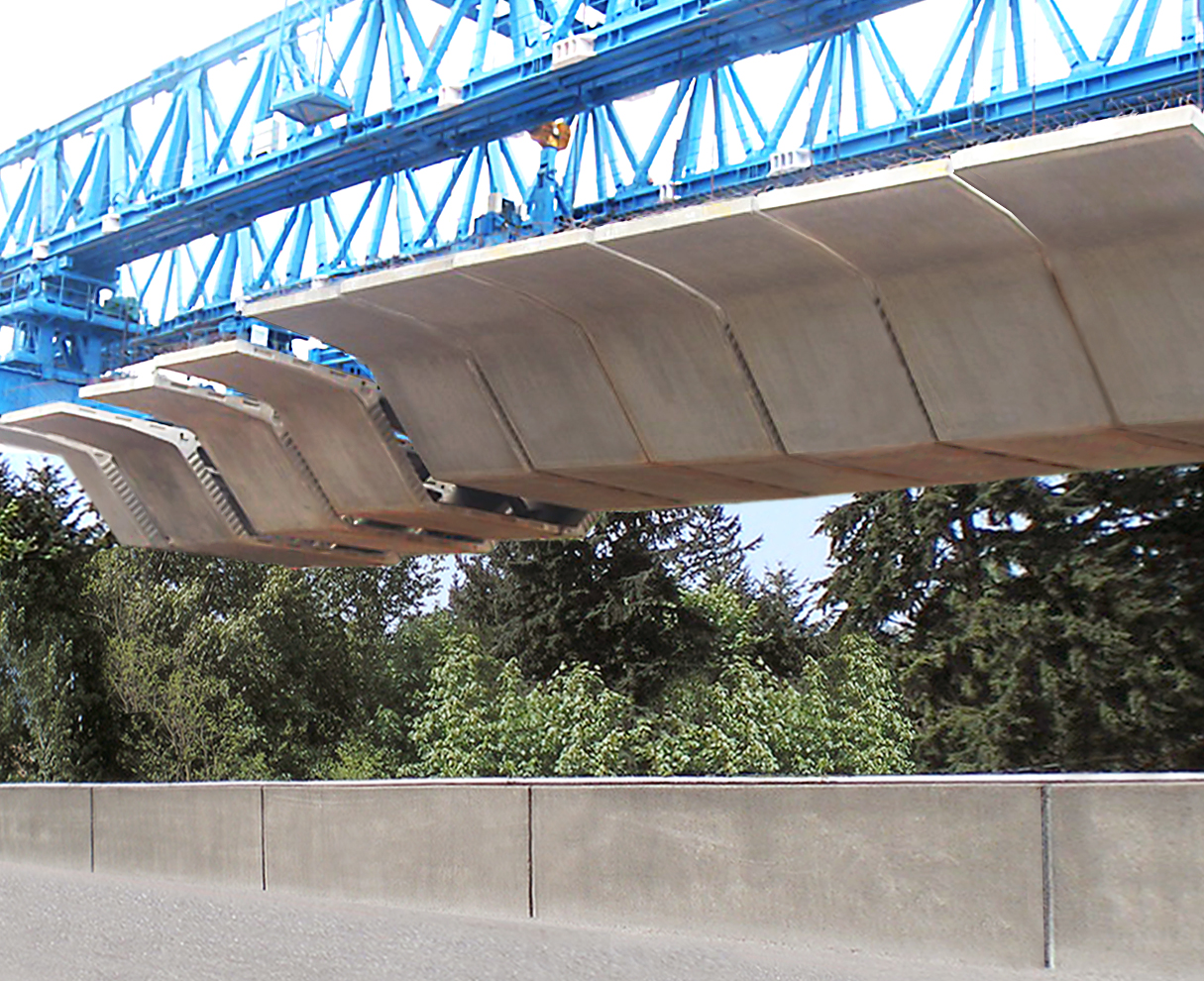

Typical spans vary from 28.5 m (93 ft) to 39.4 m (129 ft) and use epoxy joints and external post-tensioning. A special 44 m (144 ft) span was achieved by using cantilever piers in conjunction with a typical 39.4 m (129 ft) span. The substructure consists of cast-in-place piers on bored pile foundations. The viaduct is erected span-by-span with an overhead gantry.
