Hale Boggs Memorial Bridge – St. Charles Parish, Louisiana

Technical details
Client
Louisiana Department of Transportation and Development
Dates

Construction Completed: 2015

Location
St. Charles Parish, Louisiana
Partners
General Contractor: Kiewit Louisiana, Prime Consultant: CTL Group
Activity
SYSTRA IBT’s Role: Bridge Design Consultant, developed a cable replacement strategy.

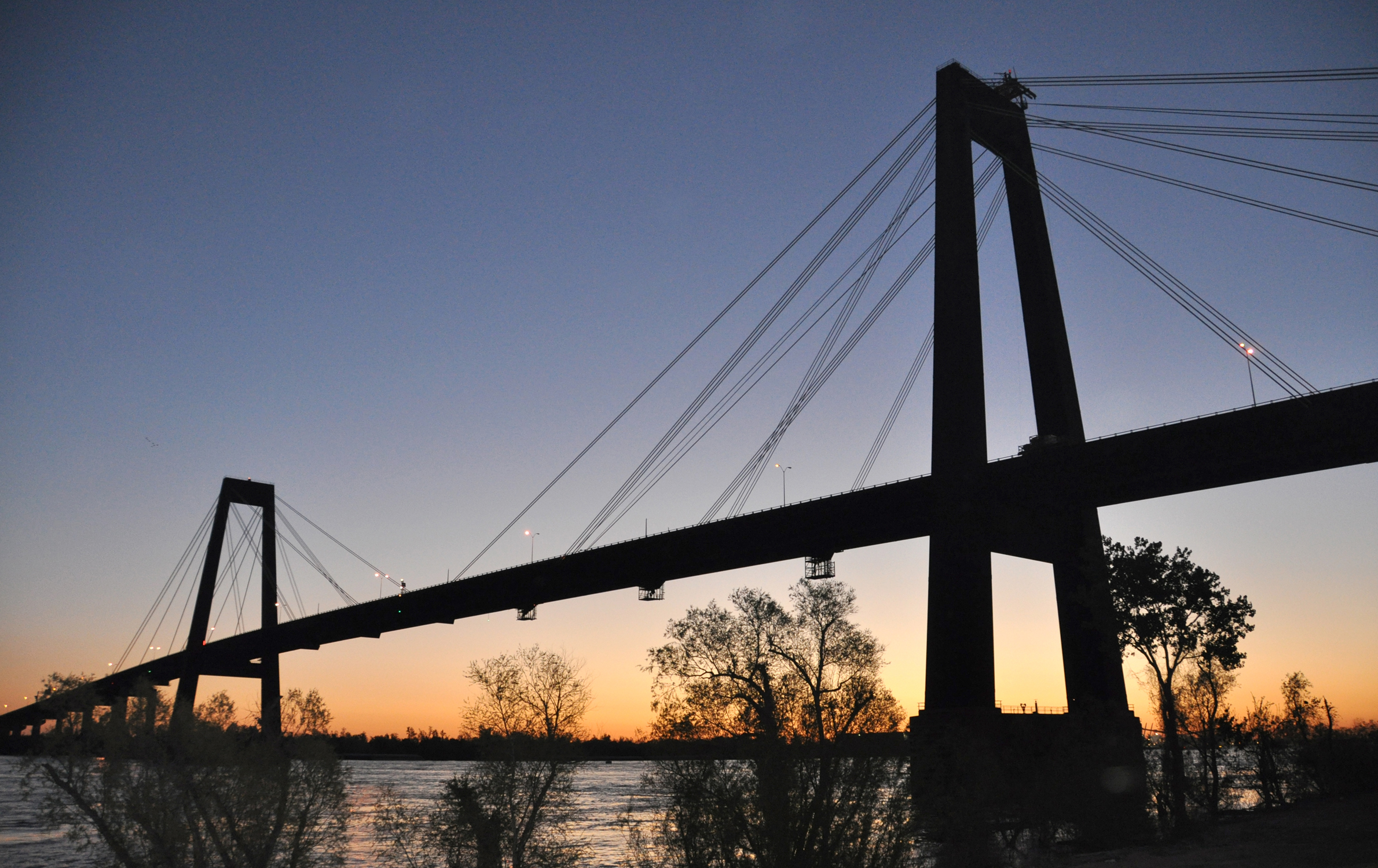

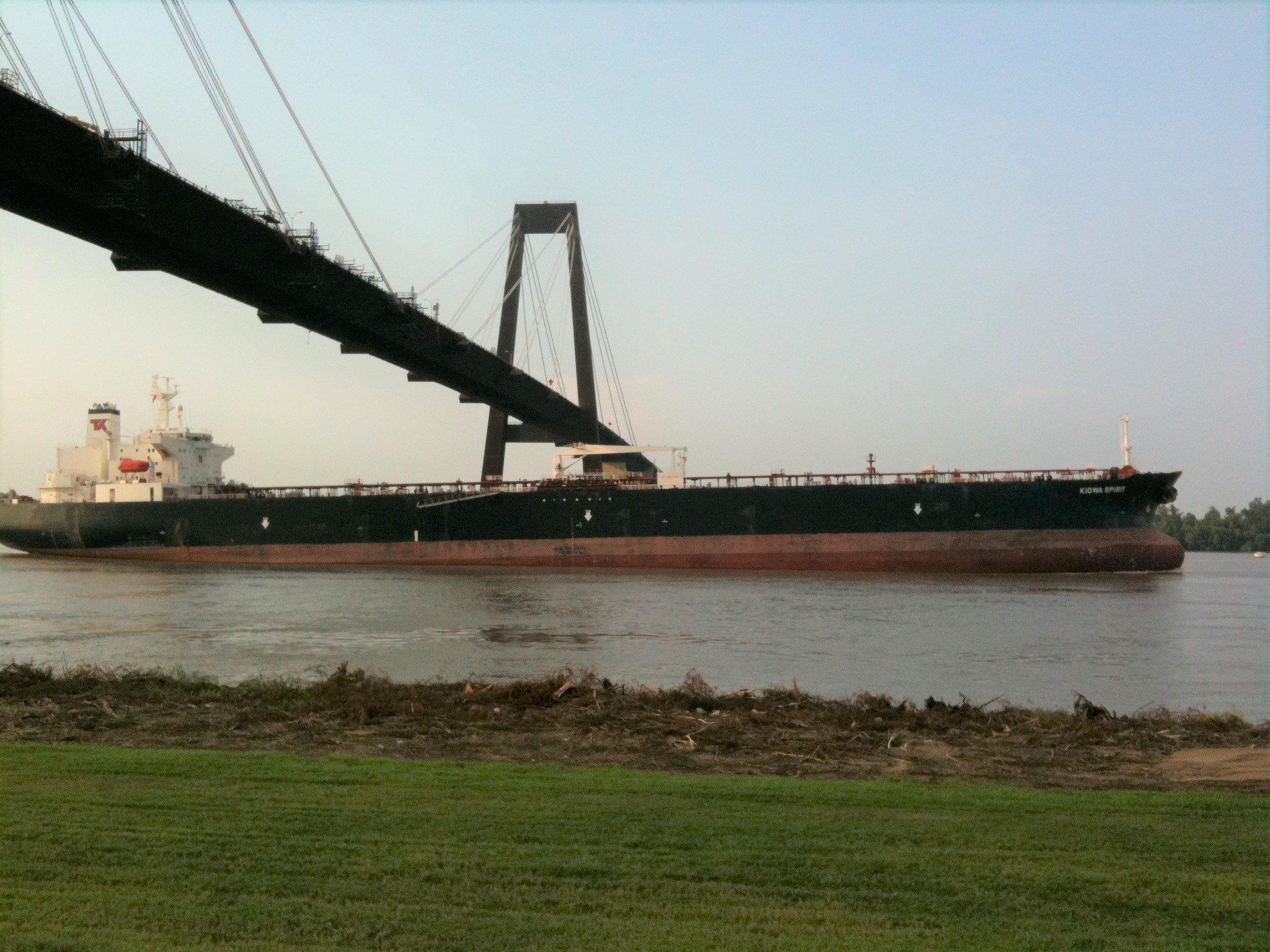

The main structure is 2,745 ft (837 m) long with a main span of 1,222 ft (372 m) providing a navigation channel of1,187 ft x 133 ft (362 m x 41 m). The bridge deck is 82 ft (25 m) wide and carries four lanes of traffic with a full shoulder on each side. During several inspections, corrosion was discovered in the original stay cable system composed of parallel ¼” wires (up to 307 wires per cable).

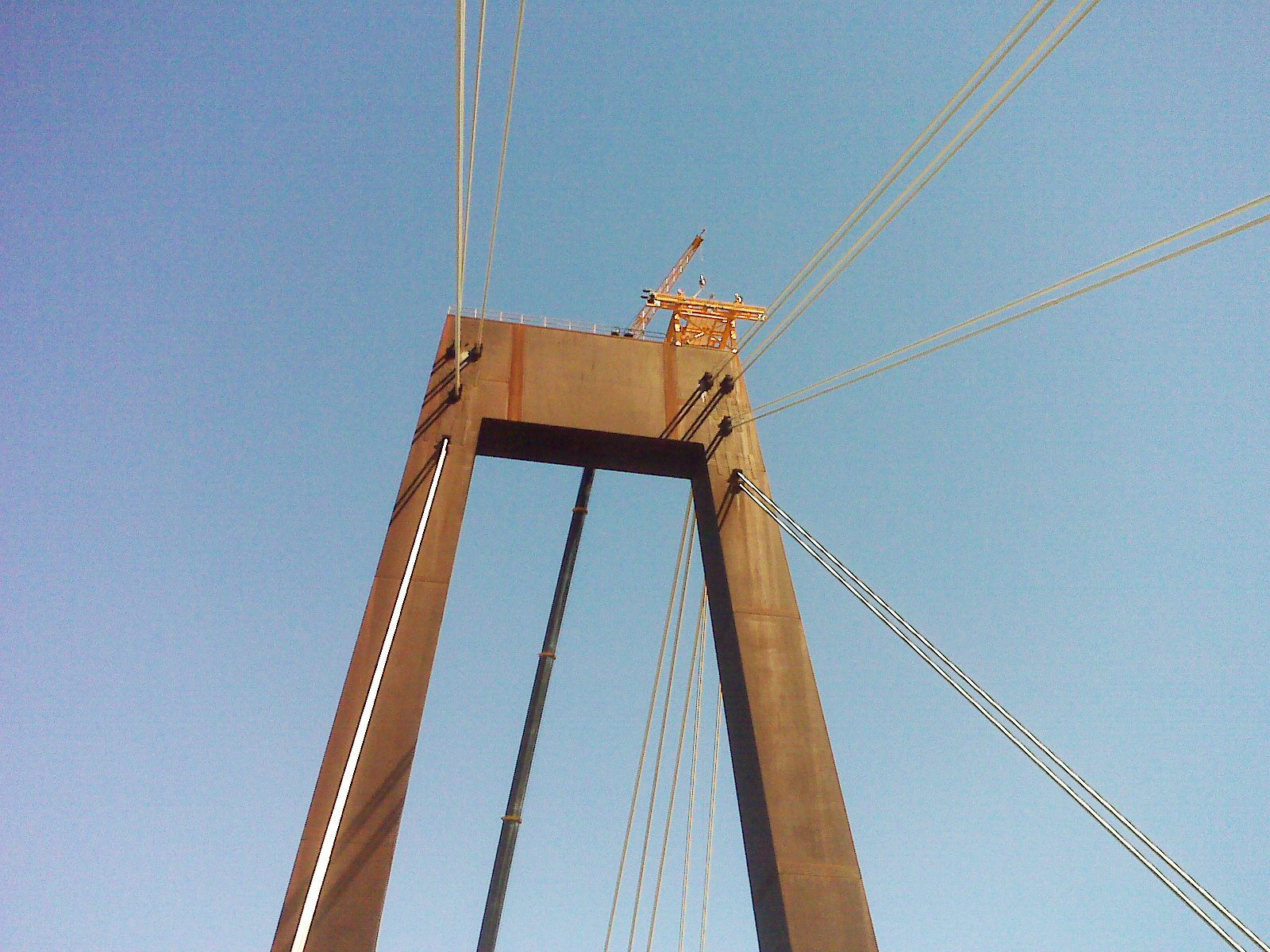

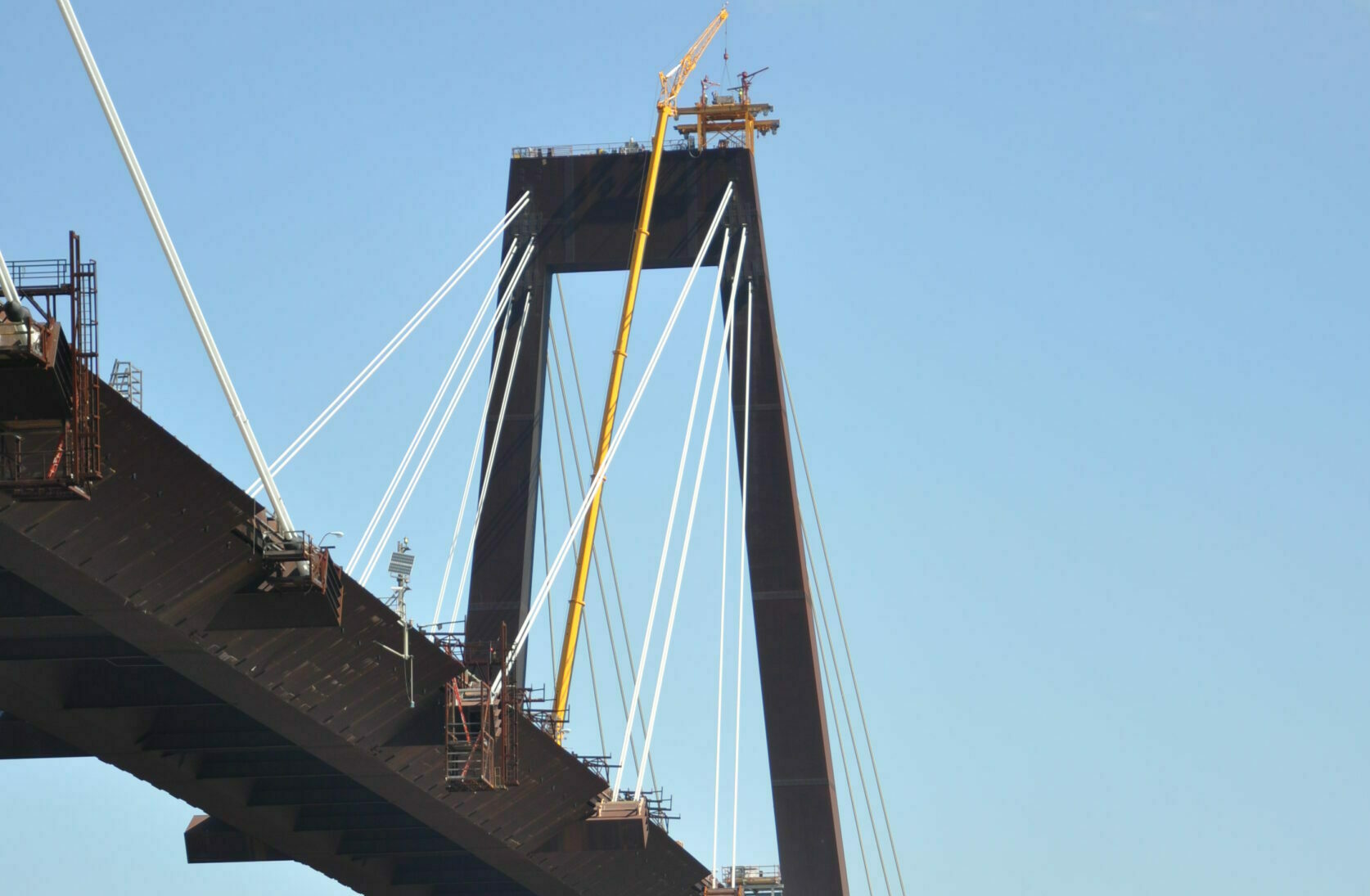

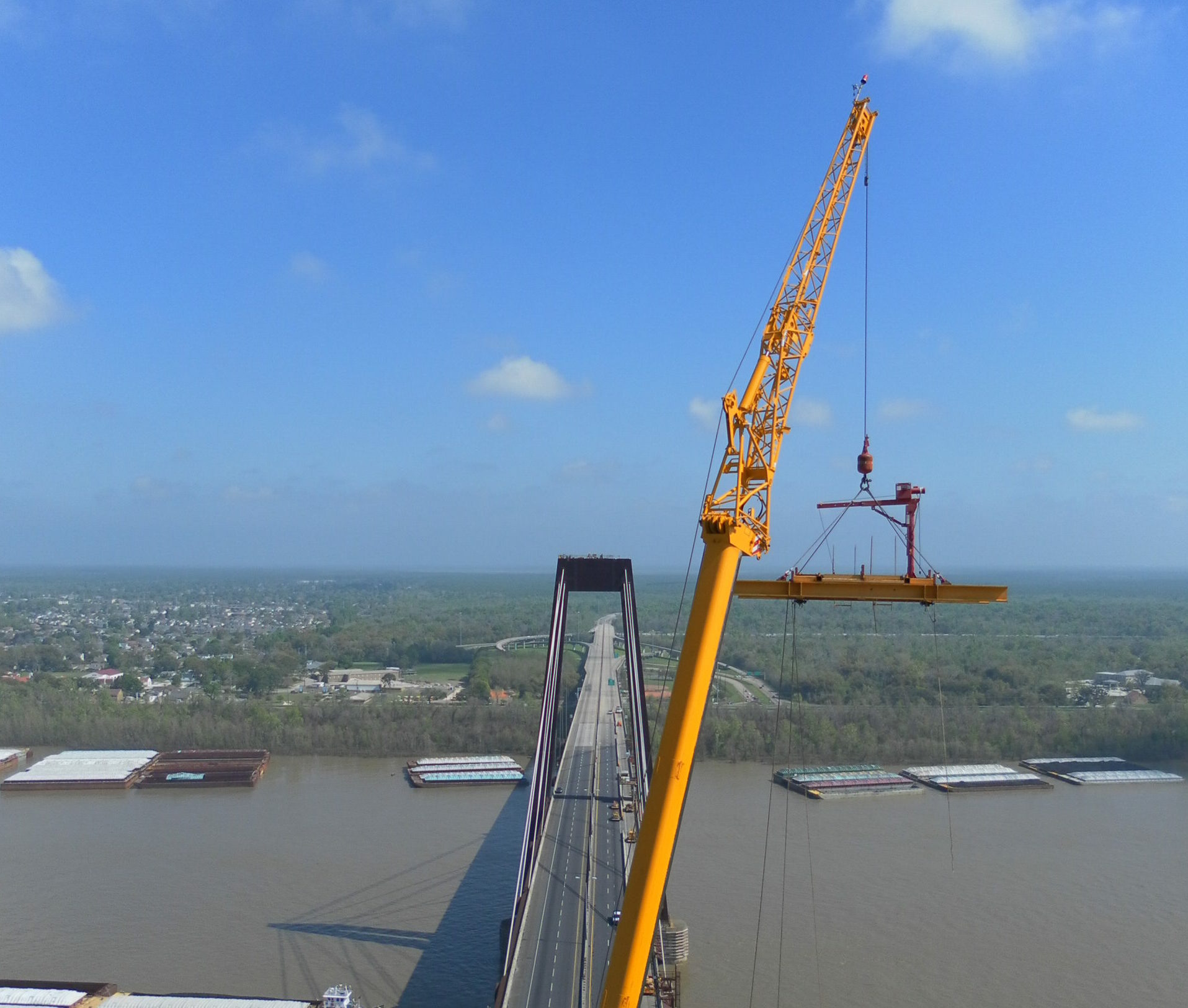

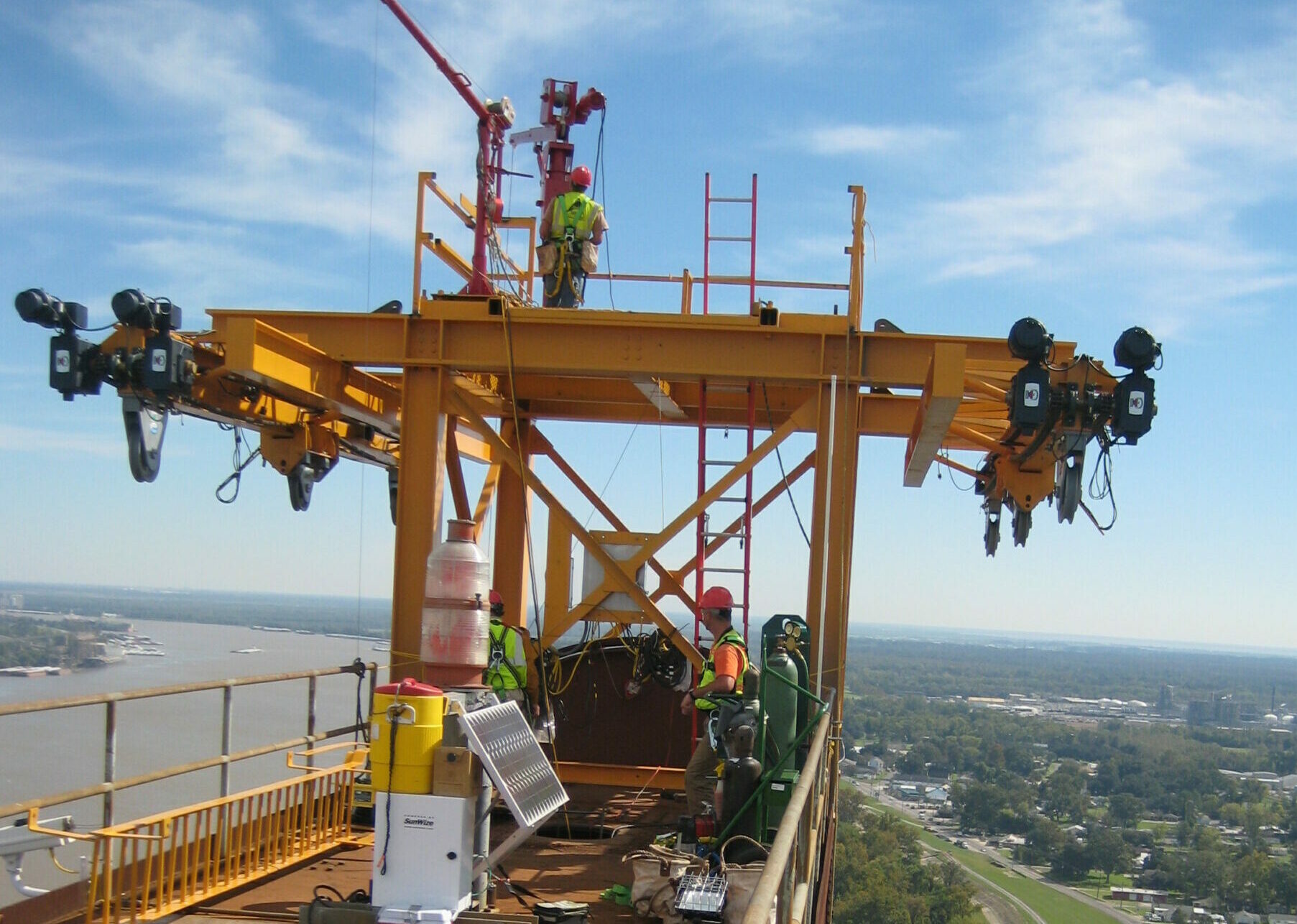

SYSTRA IBT developed a cable replacement strategy that minimizes impact to traffic and modifications to the existing structure. The stays have been replaced with a modern parallel strand system with superior durability and maintenance characteristics. A system of temporary cables and saddles on top of the pylons enable the bridge to remain in service throughout the stay replacement procedure without the need for load restrictions.
